Wednesday 27 March 2019

A Tale of Spectrum Pollution - Update 2

Typically as soon as a couple of kind amateurs from my radio club arrange to come down and to DF the source of the noise on 2m and 70cm which has been present for 9 months switching on and off at the same time it packs up, grrrrr.

The noise has dropped from S6 between 15:00 - 08:00 to S4 between 08:00 - 22:00 by the looks of it the best we might be able to reduce the noise to is S3 but and improvement of 18dBm.

Original spectrum pollution measurement.

Latest spectrum pollution measurement.


Monday 11 March 2019

A Tale of Spectrum Pollution - Update

My original measurements of spectrum pollution at JO01JK were slightly off.   It turned out the noise floor for the sound card in SpectrumLab was -97dBFS and as such when I took the first measurement with the 50ohm calibrated load connected the generated noise was below the noise floor of the sound card, I've now corrected for this and taken another measurement.

Noise against HF calibrated S-Meter

Noise against VHF calibrated S-Meter

This seems to show the noise here isn't quite as bad as I originally thought though the 6dB rise in noise caused by the apparent outside light coming on is still annoying and will need to be tracked down and fingers crossed replaced.

All the measurements I've taken so far are to the West which is the worse direction for noise and so I'll need to repeat the measurements every 45deg from North at some point just to get a base level at which to compare any apparent increase in noise in the future.

While I was at it I also did a quick calibration of the S-Meter on the IC7300 with the Anglian 3L 2m transverter using a Marconi TF2015 signal generator.   I set the output of the TF2015 to -47dBm I then used some SMA attenuators to reduce the level down to the various S-Point values for a HF receiver so in some cases I'm up to 2dB off the required power.

All measurements taken in 2.7kHz bandwidth with the AGC set too slow.

Saturday 9 March 2019

A Tail of Spectrum Pollution.

Last autumn I installed a new antenna system for two metres and immediately notice a huge rise in wideband noise and birdies across the whole two metre band, other bother!

As with all these things I tend to go at it like a bull in a china shop and only afterwards realise I should have taken some measurements of noise or even of the local beacon, oh bother!

Well the first thing to do is turn the mains power off to house and take a quick look a the waterfall on the rig compared with it on.

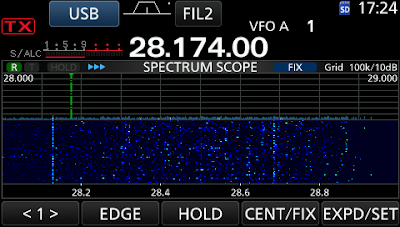

Mains switched off.

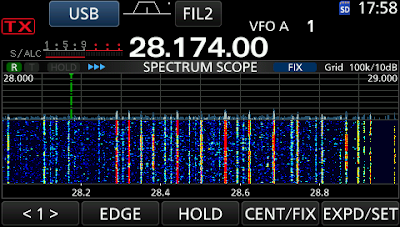

And with the mains switched back on again.

Mains switched on.

Wow! Ok I wasn't expecting that.

Next thing to do is turn the mains off again and slow turn each circuit back on by the fuse box, in my case everything stayed looking good until I hit the sockets that power all my AV equipment and WIFI / Lan access point at which point all the birdies flew back in. ;-)

Next up I switched off all the AV equipment and the router and slowly switched each item back on the first item happened to be the access point and low and behold the waterfall filled up again.

I then unplugged everything from the access point other than the power supply and again the interference vanished so wasn't being caused by the WIFI, SMPS or the unit itself.

Now I should mention I run CAT5 cabling to various devices such as the media server, sky box etc ...

For each CAT5 cable I wound 6 turns around a type 43 ferrite torrid, available from the RSGB shop,  at both ends of each CAT5 cable in turn checking each time if the birdies had reduced.

What I found was any cable run over half a metre in length need to have ferrites fitted and with the longer run cables, in excess of  a metre, need two of more ferrites at each end to get enough impedance to reduce the birdies.

After what seemed like an extraordinary length of time, hey these things take ages to do from a wheelchair, I finally managed to get a handle on the birdies to the point they're almost no existent.

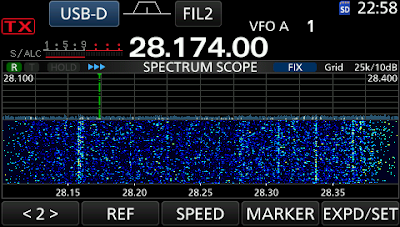

Noise after ferrites fitted.

Ok this is looking good a lot better than it did originally, and again being a wally I should have a taken a measurement of the overall noise floor and not just glance at the waterfall.

So I next setup SpectrumLab to log my local noise pollution towards the West for a few days to measure the general noise level.

SpectrumLab with Plotter logging Spectrum Noise.

To calibrate the system I took a long plot to start with of a calibrated 50ohm load @ 290K with a 2.7kHz bandwidth.

A 50ohm load at 290K is equal to -174dBm/Hz so in a 2.7kHz bandwidth -140dBm.

I only I had a couple of days measurement I wrote a quick Python program to display the results in dBm's and S-Points.

Now S-Points, a totally bloody useless measurement of anything if you ask me. ;-)  I had a quick look at S-Meters on Wikipedia and there appears to be two IARU technical recommendations for S-Meters one for HF defined as -73dBm for S9 with a 50 ohm impedance and another for VHF as being -93dBm for S9 again with a 50ohm impedance system  both with 6dB increments between points.

So I did two plots one with the HF specification

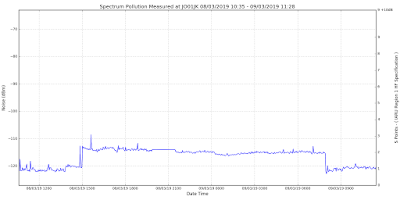

Scaled with HF S-Meter Specification.

and another with the VHF spec.

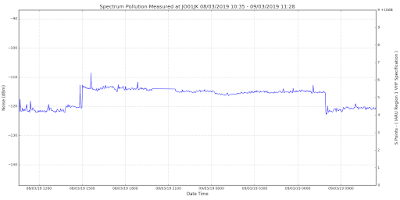

Scaled with VHF S-Meter Specification.

The first thing we can see if the chart using the VHF S-Meter specification looks horrendous while the HF doesn't look that bad and I'm inclined to go with the HF chart instead.

The second thing we can notice is at around 15:00 everyday and until 08:00 the following morning there appears to be an outside light being switched on which is raising the noise floor by 6dB so that'll  need to be tracked and sorted out.

I still need to take some measurement with the house mains off again just to see if the noise floor drop at all but I do now feel as if I getting a handle on situation even if there's plenty left to do.


Friday 1 March 2019

Kuhne Electronics IC7300 IF Transverter Mod Board - Update 2

I original posted I had issues with the Kuhne IC7300 IF interface and had removed the modification, I now believe the issue was partially the interface and board and partially a user issue.

I bought a new interface board and fitted it along with the additional 47ohm resistor that is meant to resolve the TX oscillation issues and so far no funnies have been seen.

The issues I originally reported with the RX side of things were all due to my lack of understanding than to do the interface board.

The main issue was the Anglian 3L transverter gives about 21dB gain this is such a high amount of gain it reduced the dynamic range considerably which though it made the receiver very hot it also picked up all the local RF noise was causing me a headache.

What I've since realised is I should have added some attenuation to the RX path before the 7300 in fact I've added just enough to give me a noise figure or around 2dB which is in line with the quoted specification for the Anglian this results in almost no loss in dynamic range.

The only problem I found was having such a hot receiver was I need to pay a lot more attention to local generated RF noise than I had previously and after an afternoon of slowly switching all the electronics off the house and a huge amount of ferrite I managed to reduce the noise and birdies by 10dB.

So I need to apologise to Kuhne for writing such a horrid review of the IC7300 IF interface when the reality is most of the issues were down to me being a draft bugger.
